Geometry Difficulty 5.6 AIME, harder Prove it Croatia

The incircle of a scalene triangle ABCABC touches the sides AB‾\overline{AB} and CA‾\overline{CA} at the points MM and NN respectively. The excircles opposite to vertices BB and CC touch the line BCBC at points PP and QQ respectively. Prove that the quadrilateral MNPQMNPQ is cyclic if and only if ∠CAB=90∘\angle CAB = 90^\circ.

Solution

Let ∣BC∣=a|BC| = a, ∣CA∣=b|CA| = b and ∣AB∣=c|AB| = c be the lengths of the sides of the triangle ABCABC and let s=12(a+b+c)s = \frac{1}{2}(a+b+c) be its semiperimeter. Without loss of generality we may assume b<cb < c.
Let SS be the intersection of lines BCBC and MNMN, and let XX be the point where the incircle of the triangle ABCABC touches the side BC‾\overline{BC}.

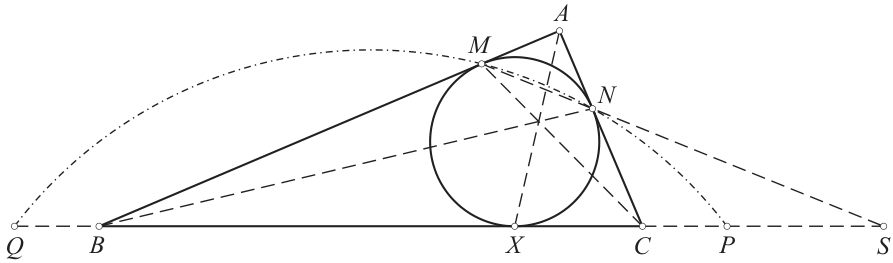

Figure 1

Menelaus' theorem applied to the line MNMN and the triangle ABCABC gives
∣AM∣∣BM∣⋅∣BS∣∣CS∣⋅∣CN∣∣AN∣=1. \frac{|AM|}{|BM|} \cdot \frac{|BS|}{|CS|} \cdot \frac{|CN|}{|AN|} = 1.
Since ∣AM∣=∣AN∣=s−a|AM| = |AN| = s-a, ∣BM∣=∣BX∣=s−b|BM| = |BX| = s-b and ∣CN∣=∣CX∣=s−c|CN| = |CX| = s-c, we have
∣AM∣∣BM∣⋅∣BX∣∣CX∣⋅∣CN∣∣AN∣=1, \frac{|AM|}{|BM|} \cdot \frac{|BX|}{|CX|} \cdot \frac{|CN|}{|AN|} = 1,
and hence
∣BX∣∣CX∣=∣BS∣∣CS∣=∣SX∣+∣BX∣∣SX∣−∣CX∣. \frac{|BX|}{|CX|} = \frac{|BS|}{|CS|} = \frac{|SX| + |BX|}{|SX| - |CX|}.
Denoting ∣SX∣=d|SX| = d gives
s−bs−c=d+(s−b)d−(s−c), \frac{s-b}{s-c} = \frac{d+(s-b)}{d-(s-c)},
i.e. d(c−b)=2(s−b)(s−c)d(c-b) = 2(s-b)(s-c).
We also have ∣PX∣=∣CX∣+∣CP∣=(s−c)+(s−a)=b|PX| = |CX| + |CP| = (s-c) + (s-a) = b, analogously ∣QX∣=c|QX| = c and ∣SM∣⋅∣SN∣=∣SX∣2|SM| \cdot |SN| = |SX|^2 (by the power of the point SS with respect to the incircle of the triangle ABCABC).
Finally, the following sequence of equivalent statements finishes the proof:
The quadrilateral MNPQMNPQ is cyclic.
  ⟺  ∣SM∣⋅∣SN∣=∣SP∣⋅∣SQ∣  ⟺  ∣SX∣2=(∣SX∣−∣PX∣)(∣SX∣+∣QX∣)  ⟺  d2=(d−b)(d+c)  ⟺  d(c−b)=bc  ⟺  2(s−b)(s−c)=bc  ⟺  a2−(b−c)2=2bc  ⟺  a2=b2+c2  ⟺  The triangle ABC has a right angle at vertex A. \begin{align*} \iff |SM| \cdot |SN| &= |SP| \cdot |SQ| \\ \iff |SX|^2 &= (|SX| - |PX|)(|SX| + |QX|) \\ \iff d^2 &= (d-b)(d+c) \\ \iff d(c-b) &= bc \\ \iff 2(s-b)(s-c) &= bc \\ \iff a^2 - (b-c)^2 &= 2bc \\ \iff a^2 &= b^2 + c^2 \\ \iff \text{The triangle } ABC \text{ has a right angle at vertex } A. \end{align*}
